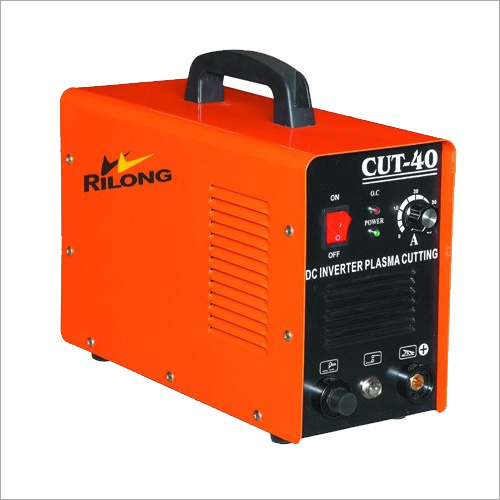

Inverter Plasma Cutting Machine

Inverter Plasma Cutting Machine
Inverter Plasma Cutting Machine
Product Code : CUT-40 SERIES
Product Description

We have acquired the acumen and experience to manufacture, supply and export Inverter Plasma Cutting Machine. Premium quality raw material that is supposed to be the best in the market has been used for the manufacturing of these products. Our clients appreciate these products for their amperage adjustment, high duty cycle, low power consumption and accurate performance. Inverter Plasma Cutting Machine can be availed from us in varied different specifications in accordance to the requirements of the clients.

Features

  • Cutting capacity increased 1.8 times higher in cutting speed compare with flame cutter.
  • Thick metal plate can be cut easily and quickly.
  • Suitable for cutting stainless steel,copper,iron and aluminum metal etc.
  • HF untouched ARC-starting cutting (80,100,120)
  • HF touched ARC-starting cutting (30-40-60)

Model

Input
voltage (V)

Frequency(HZ)

Rated input capacity(KVA)

no-load voltage(V)

Current range(A)

Max cutting thickness (mm)

Insulation
class

Protection degree

Rated
Duty
cycle(%)
Dimension
(mm)
Weight
(KG)

CUT-30

220

50/60

3.5

230

10-30

8

H

IP21S

60

390*210*305

9.0

CUT-40

220

50/60

4.8

230

10-40

10

H

IP21S

60

390*210*305

9.0

CUT-60

380

50/60

9.5

260

10-60

20

H

IP21S

60

515*210*380

19
